X-ray foreign body detector

X-ray foreign body detector

Taiyiming X-ray foreign object detector is a high-performance X-ray foreign object detector developed based on the unique high-speed processing algorithm of real time and the technical basis of Korean electronic industry.

Principle: different materials in the tested products have different absorption rates after being irradiated by X-rays, which are imaged and converted into image information through the detector. The image is represented as gray image. The gray of different materials or foreign objects is different. The foreign objects are separated from the tested products through preset algorithm processing and graphic image technical analysis.

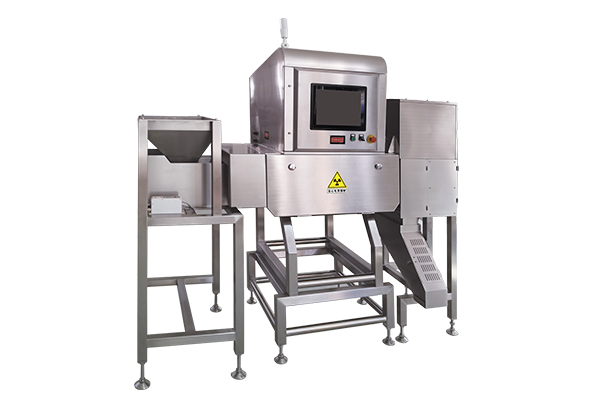

01、X-ray foreign matter detector - bulk materials

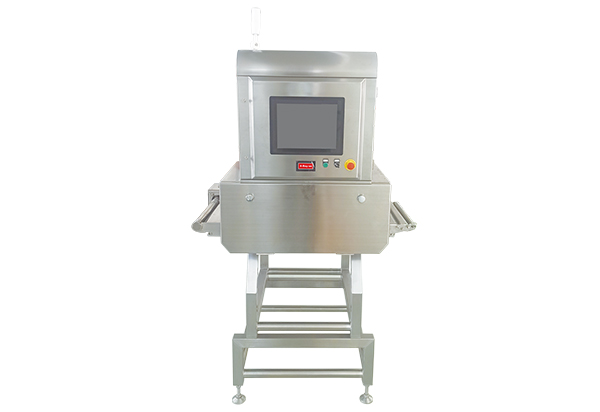

02、X-ray foreign matter detector -- Packaging

Advantages of X-ray foreign object detector:

(1) Have better ability to detect metal foreign matters, and can detect non-metallic foreign matters such as glass in products.

(2) It has good detection ability for metal foreign matters in aqueous products such as bean paste and sauce.

(3) It has good detection ability for metal foreign matters in leisure food packaged with aluminum film, dairy products packaged with aluminum foil and cooked food products.

(4) The detection ability is not affected by the state of frozen products.

Based on these advantages of X-ray foreign body detection system, at present, many enterprises have begun to use or discuss whether to use X-ray foreign body detection system to further improve the quality of their products.

Taiyiming X-ray foreign body detection system is a product independently developed by Taiming, South Korea. Its products have the following characteristics:

(1) Unique image processing software

(2) Empty machine detection capability and accuracy（ Փ Mm): SUS304 ball: 0.3mm, ceramic ball: 1.0mm, glass ball: 1.0mm.

(3) The product design complies with HACCP standards.

(4) Multiple safety protection design, safe X-ray leakage protection, and the leakage level is less than 1 μ ｓｖ／ｈ。

The radiation level of X-rays to products is much lower than the standard set by the World Health Organization.
